उत्पादों का विवरण

Sf-100kw Super Audio Induction Heater

एमओक्यू: 1
कीमत: 4500
विस्तृत जानकारी
प्रतिरूप संख्या।:
एसएफ-100 किलोवाट
आवृत्ति:
20-50 किलोहर्ट्ज
प्रकार:
आईजीबीटी
परिवहन पैकेज:
लकड़ी का बक्सा
विनिर्देश:
50 - 55 सेमी
ट्रेडमार्क:
रोल/शीट/रीम पैकिंग
मूल:
चीन
एचएस कोड:
डबल साइड कोटिंग
उत्पादन क्षमता:
मुक्त
प्रमुखता देना:

Super Audio induction heater machine

,

Industrial induction heater 100kW

,

High-power induction heating equipment

उत्पाद विवरण
Induction Heating Machine:
Advantage:
1 More than 17 years experience, stable and goods performance
2 CE certificated
3 Copperated with Chow Tai FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, can match better different length induction coil

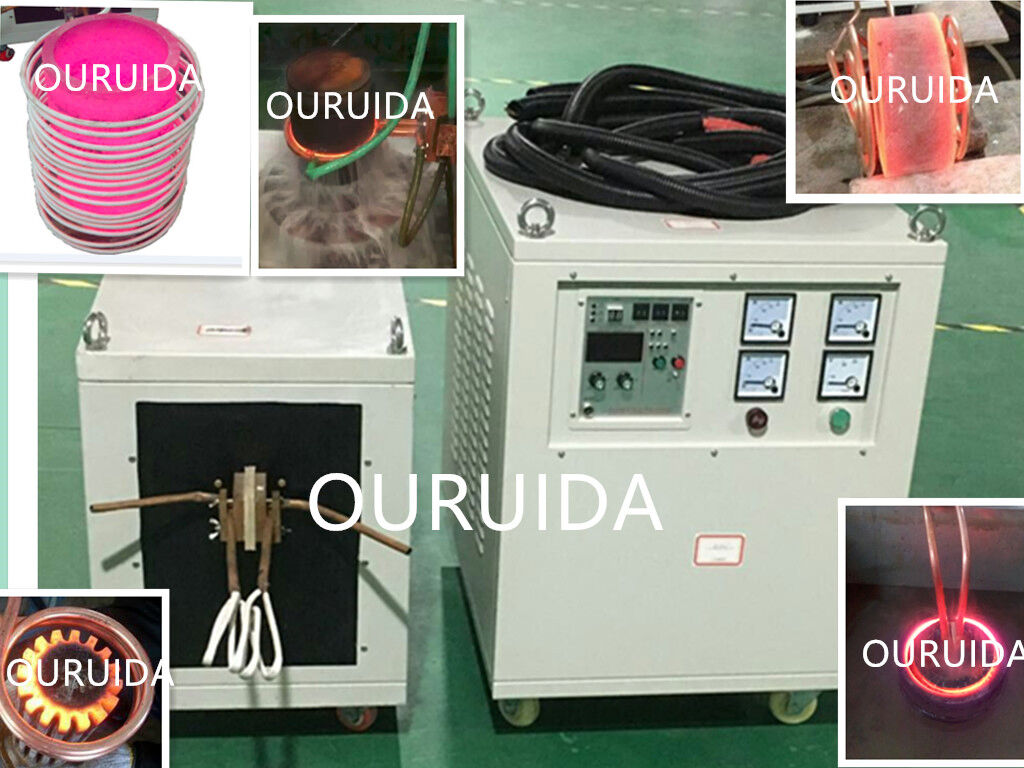

Sf-100kw Super Audio Induction Heater 0

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
Sf-100kw Super Audio Induction Heater 1
Sf-100kw Super Audio Induction Heater 2Sf-100kw Super Audio Induction Heater 3
 Type SF-100AB
 Work Power  3*380v/415v/440v/480v  50-60hz
 The range of operating voltage  340-430V AC
 Output power  100KW
 Input current  150A
 Fluctuating frequency  20-50khz
 Timing (Heat time,Retain time,Cool time)  1-99S
 The flow rate of cooling water  0.15 Mpa 20L/Min
 Water temperature protection point  40centidegree
 Duty cycle  100% (40degree room temperature)
 Weight  Mainparts:120Kg    Transformer:95kg
 Size Main Parts:800*600*800MM
Transformer: 650*450*600MM
