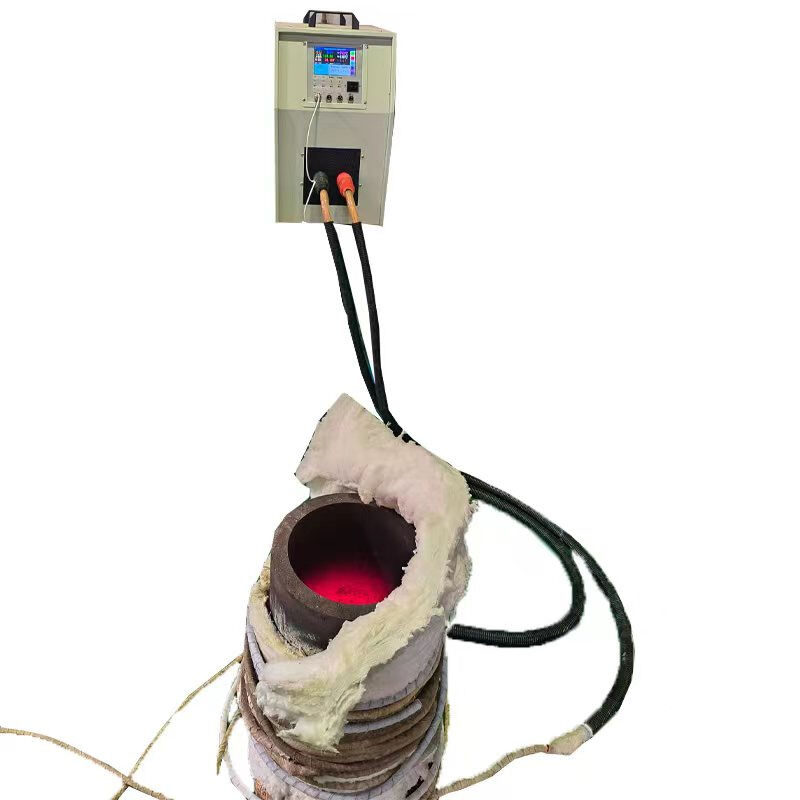

440V, 480V Preheat Induction Heating Machine DSP-35kw Air Cooled Digital Heater

440V, 480V Preheat Induction Heating Machine DSP-35KW Air Cooled Digital Heater





Advantage:
1 More than 23 years experience, stable and goods performance
2 CE certificated
3  Digital Type
4 8 Section heating
5 Air Cooled Cooling, no need any separate cooling system for the machine.

Main Characteristic:
1 Front Panel use the LCD Touch Screen, Key and Power Switch, all digital display, can use Switch Signal( Electrical frequency signal) to control the
machine start and stop, and control the power via PLC.
Visual Human-computer Interface makes the operator feel more intimate and intuitive. Because of its abundant industrial interfaces, it has stronger and more flexible matching ability with robots, various automation equipment and remoe control (unmanned) devices.
2 Induction Heating Machine have remote control function and adopt digital circuit control, power regulation can be adjusted from 0% to 100% resolution, and digital PID temperature control module can be configured to set the target temperature of workpiece (infrared temperature measurement or thermocouple temperature measurement) automatically. The accuracy of temperature control is + 1'C for power regulation in heating process.
3 There are 5 working model, manual, timer, Stop temperature, Constant temperarure, section heating model.
1) Manual, On and stop in the Switch
2 ) Timer, setting heating time, after reach the heating time, then stop.
3) Stop Temperature: Set the heating temperature that we need it, when the reach to the temperature that we need it, then stop the machine.
4) Constant Temperature: Adjust the heating power automatic to keep the same temperature to the workpiece.
5) Section Heating model, there are 8(S1-S8) options, each section can set the heating power, timer, temperature or constant temperarture, temperature or constant temperature just can choose any one. Power as 0 means no need to heat, put the paramater that you need to set, if not choose that function then show"--
4 There are 9 (P1-P9)programs, which can memorize 9 different workpiece in the machine, and select programs by clicking P(P1-P9). Can save much time if you have many workpiece in one machine, you can choose the programs (P1-P9) to fast working


Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation
guarantee.
