Professional Manufacturer High Frequency Induction Heating Machine (HF-25AB)

Professional Manufacturer High Frequency Induction Heating Machine (HF-25AB)

एमओक्यू: 1
विस्तृत जानकारी
प्रतिरूप संख्या।:
एचएफ-25एबी
आवेदन:
तापन, शमन, फोर्जिंग, पिघलना, वेल्डिंग
शक्ति:
25 किलोवाट
आवृत्ति:
30-80khz
कार्य वोल्टेज:
380-480V*3 चरण
परिवहन पैकेज:
लकड़ी का बक्सा
विनिर्देश:
50 - 55 सेमी
ट्रेडमार्क:
रोल/शीट/रीम पैकिंग
मूल:
चीन
एचएस कोड:
डबल साइड कोटिंग
उत्पादन क्षमता:
मुक्त
प्रमुखता देना:

high frequency induction heating machine

,

HF-25AB induction heater

,

professional induction heating equipment

उत्पाद विवरण

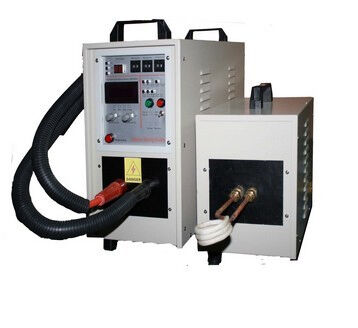

Professional Manufacturer High Frequency Induction Heating Machine (HF-25AB)

Professional Manufacturer High Frequency Induction Heating Machine (HF-25AB) 0Professional Manufacturer High Frequency Induction Heating Machine (HF-25AB) 1Professional Manufacturer High Frequency Induction Heating Machine (HF-25AB) 2

Advantage:
1 More than ten years experience,stable and goods performance
2 CE certificated
3 Copperated with CHOWTAI FOOKS, Matsushita,Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
 Type HF-25AB
 Work Power  3*380v/415v/440v/480v  50-60hz
 The range of operating voltage  340-430V AC
 Output power  25KW
 Input current  25A
 Fluctuating frequency  30-80khz
 Timing (Heat time,Retain time,Cool time)  1-99S
 The flow rate of cooling water  0.15 Mpa 9L/Min
 Water temperature protection point  40centidegree
 Duty cycle  100% (40degree room temperature)
 Weight  Mainparts:38KGS  Tranformer:25KGS
 Size Main Parts:640*280*550mm
Transformer:405*260*405mm
