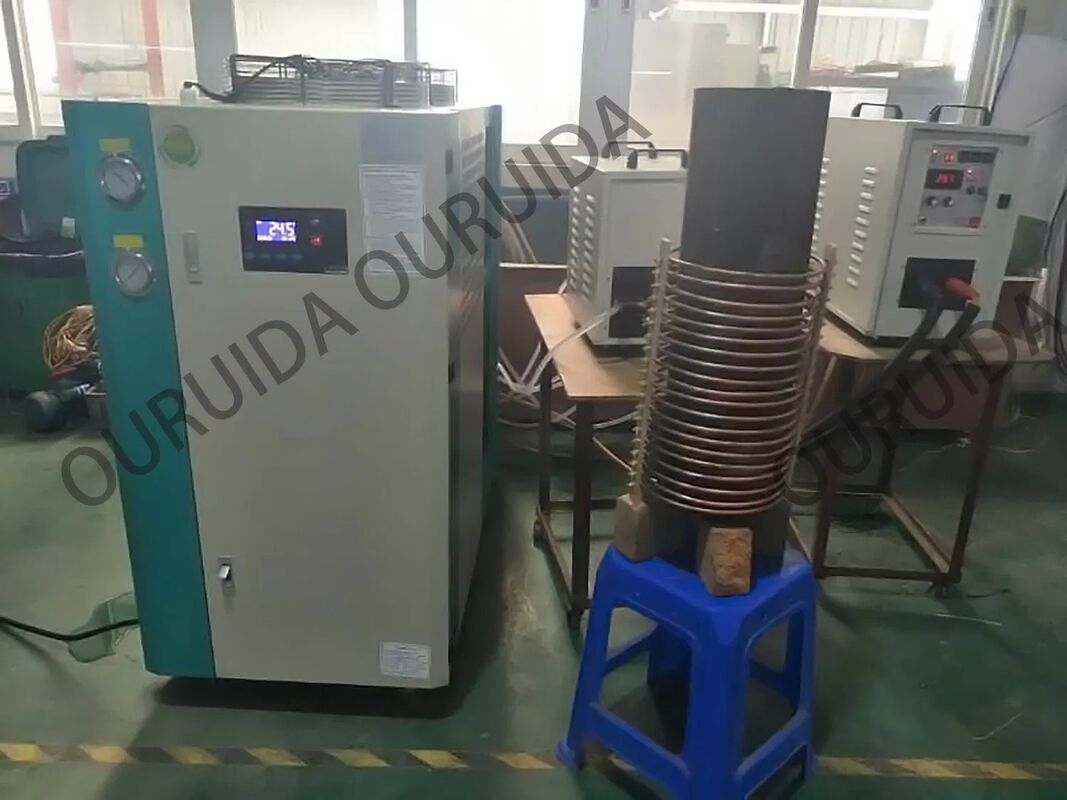

 New induction heating machine for heatment with 5p cooling -water machine 40KW
Induction Heating Machine:
Advantage:
1 More than ten years experience,stable and goods performance
2 CE certificated
3 Copperated with ZHOUDAFU, Matsushita,Foxconn, Media, Gree a6nd ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4Â Simple to install, Installation can be done by unprofessional person very easily;
5Â Light weight
6Â Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
7Â Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
| Â Type | HF-40AB |
|  Work Power |  3*380v/415v/440v/480v 50-60hz |
| Â The range of operating voltage | Â 340-430V AC |
| Â Output power | Â 40KW |
| Â Input current | Â 40A |
| Â Fluctuating frequency | Â 30-80khz |
| Â Timing (Heat time,Retain time,Cool time) | Â 1-99S |
| Â The flow rate of cooling water | Â 0.15 Mpa 10L/Min |
| Â Water temperature protection point | Â 40centidegree |
| Â Duty cycle | Â 100% (40degree room temperature) |
|  Weight |  Mainparts:42Kg   Transformer:32kg |
| Â Size | Main Parts:Â Main Parts:640*280*550mm Transformer: 510*260*410mm |
